NGF Housingt

First step of the Next Generation Formant Project is the housing and the PSU. I want my Elektor Formant based clone to be portable. Therefore I ordered a custom made 19’’ flightcase, build to my specifications. The enclosure holds four rows of modules in Eurorack format. As PSU two of my basic PSU with LM350 are used.

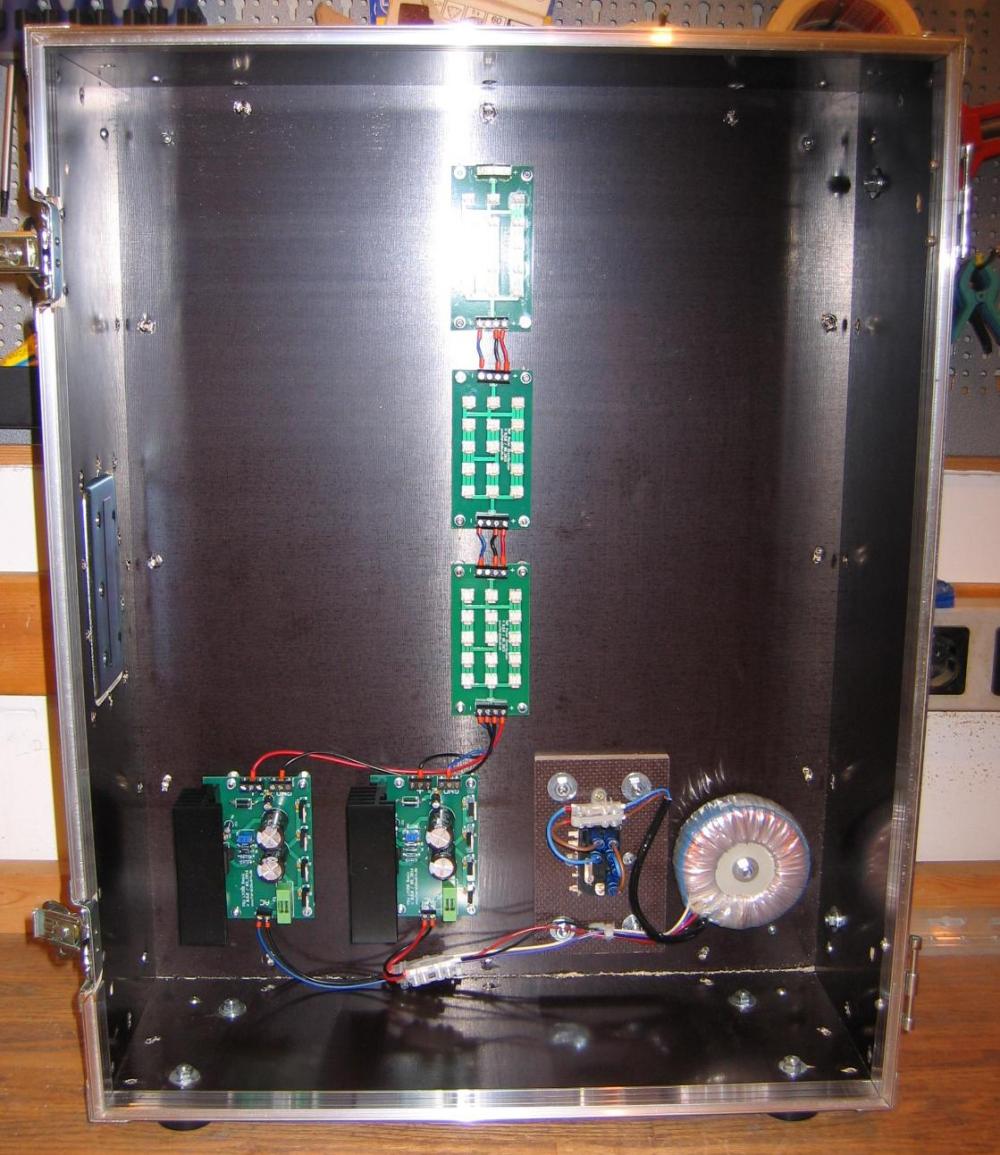

This picture shows the enclosure with installed power supply unit, power distribution and mains transformer. The wiring is done and tested.

NGF Housing

Next Generation Formant enclosure with PSU

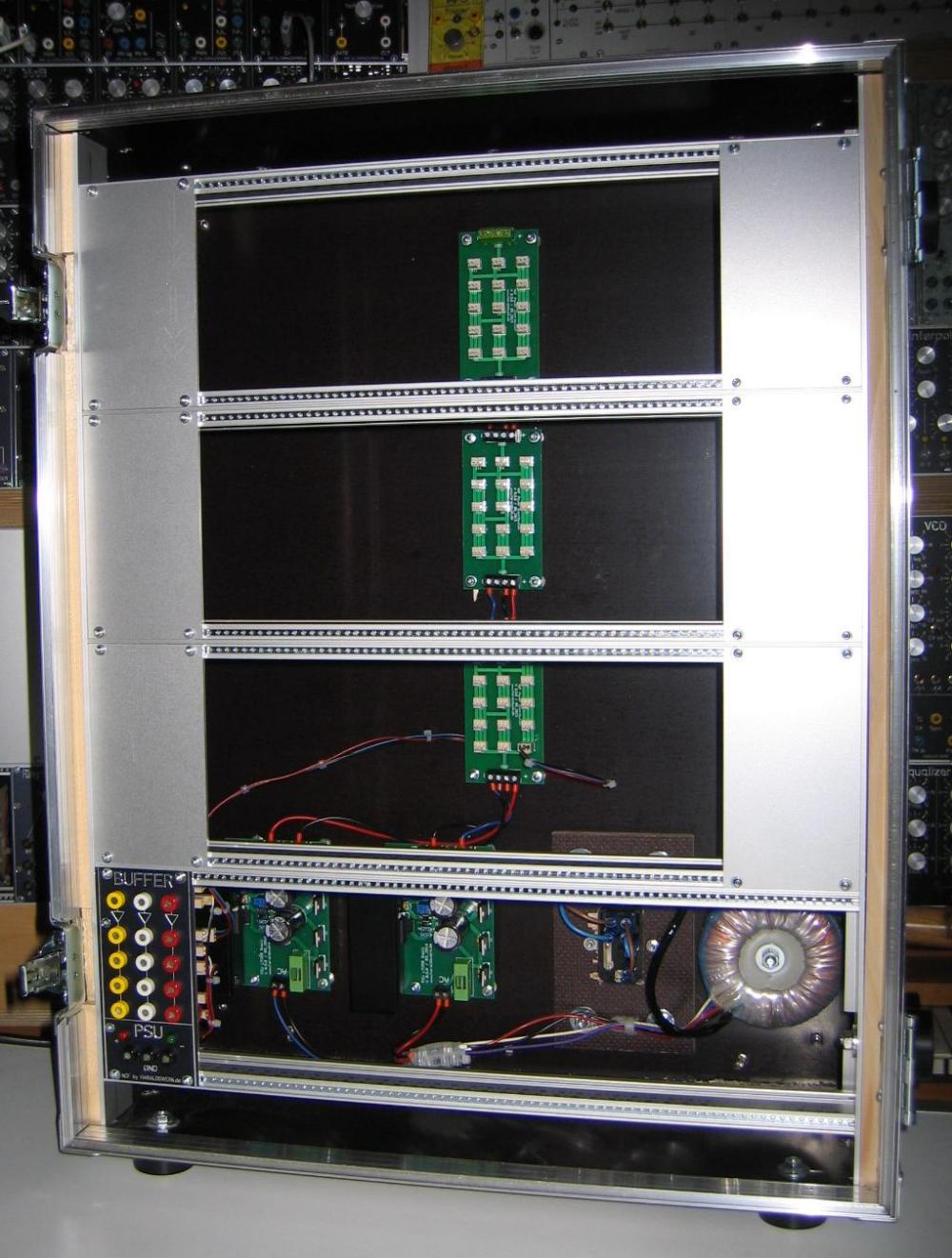

Flightcase with frame mounted in the enclosure, the first module attached. The enclosure is ready for more.

NGF Housing

Next Generation Formant enclosure ready for modules

2017 January
