Motivation
Another step to move my Shakuhachi to Synth project to Euro.
As a wind player I need to keep my hands on the wind instrument. This module was first thought for connecting pedals to my modular for changing control voltages. But it is useful to include external signal changers like echo or delay or any other sound and CV source as well. It has no signal amplification or attenuation though. For audio use I recommend using my Audio Send and Receive module.
Specs and features
- Connects a Euro system to external sources
- DC coupled for pedal and CV use
- Runs on +/-12V and +/-15V
- Power consumption around 15mA each rail
Implementation
Schematic

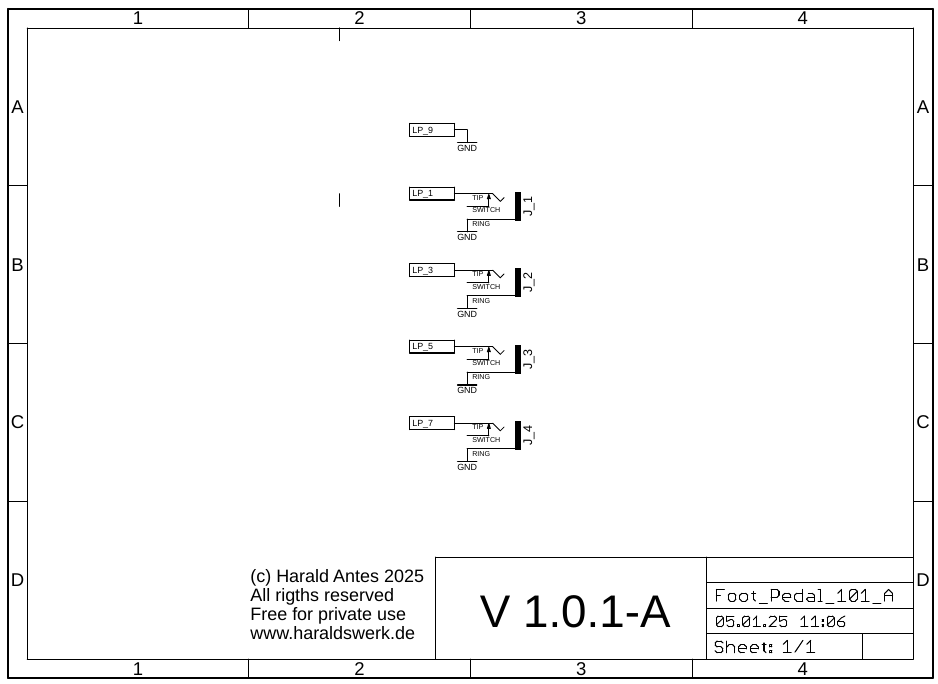

CV Pedal Connector: Control board schematic

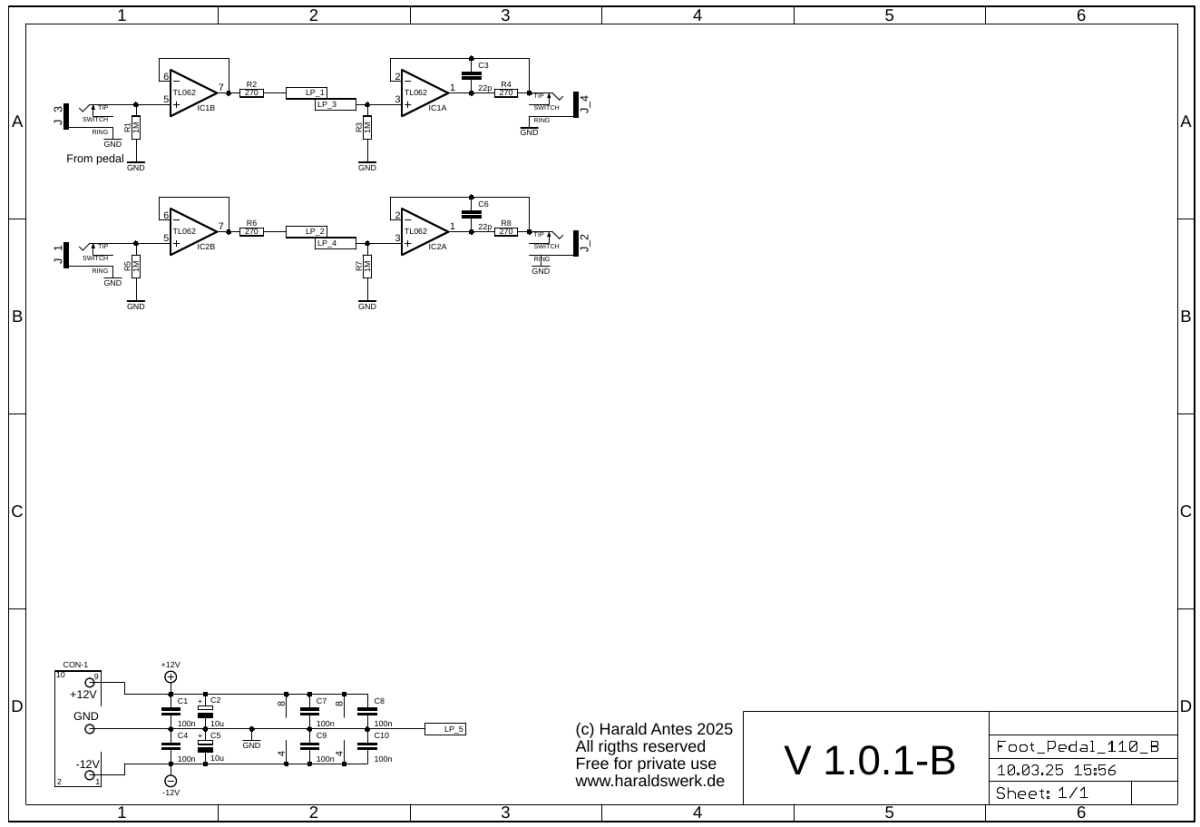

CV Pedal Connector: Main board schematic
Description:
Calibration
- None
Building hints
- None
Special parts
- None
Download
CV Pedal Connector documentation downloadCV Pedal Connector main board Gerber files download
CV Pedal Connector control board documentation files download
CV Pedal Connector control board Gerber files download
CV Pedal Connector *.fpd files download

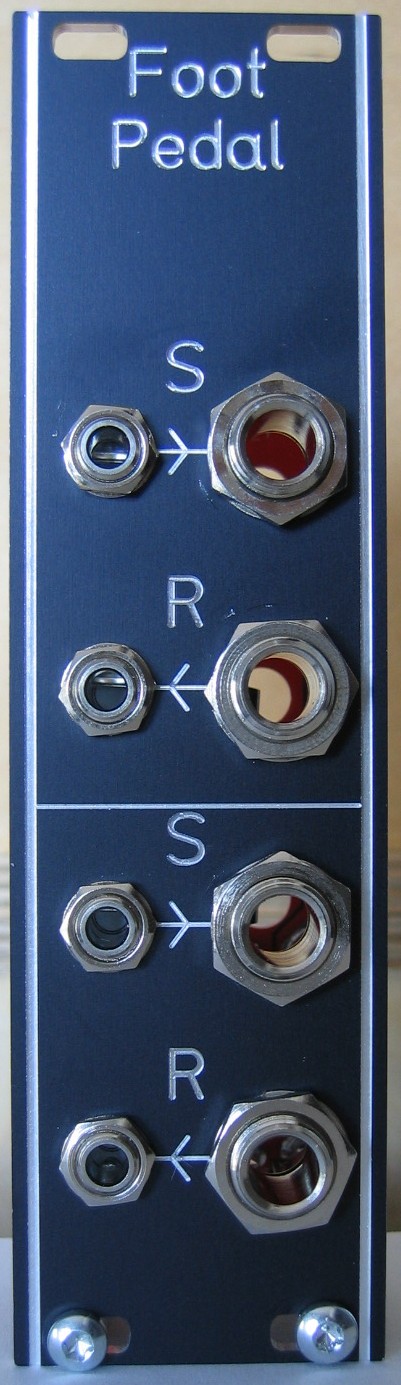

CV Pedal Connector: Front view

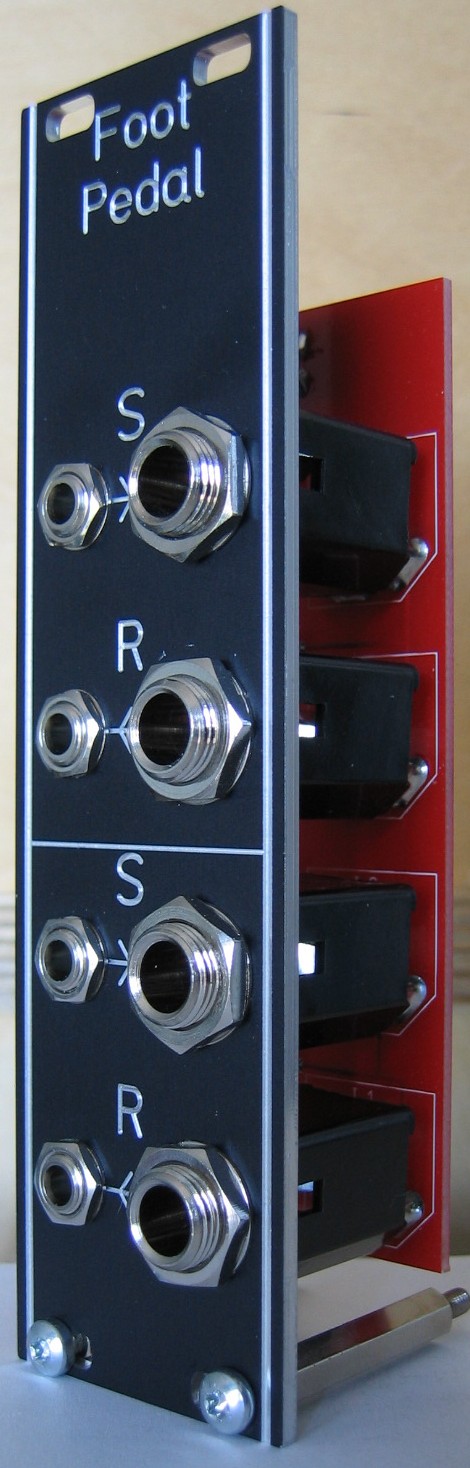

CV Pedal Connector: Halve front view left

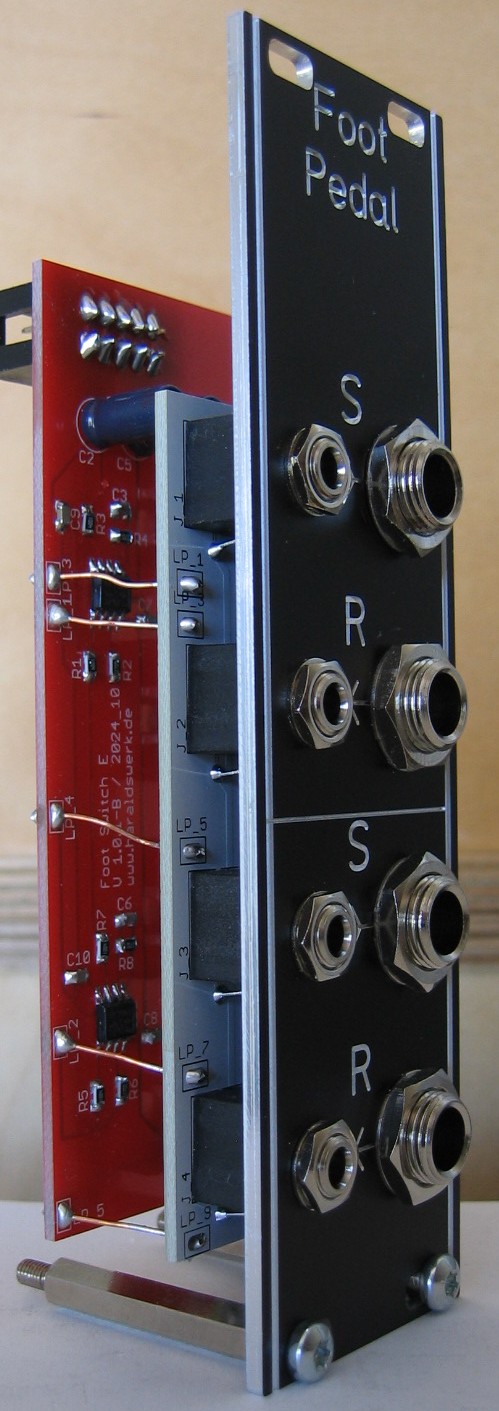

CV Pedal Connector: Halve front view right

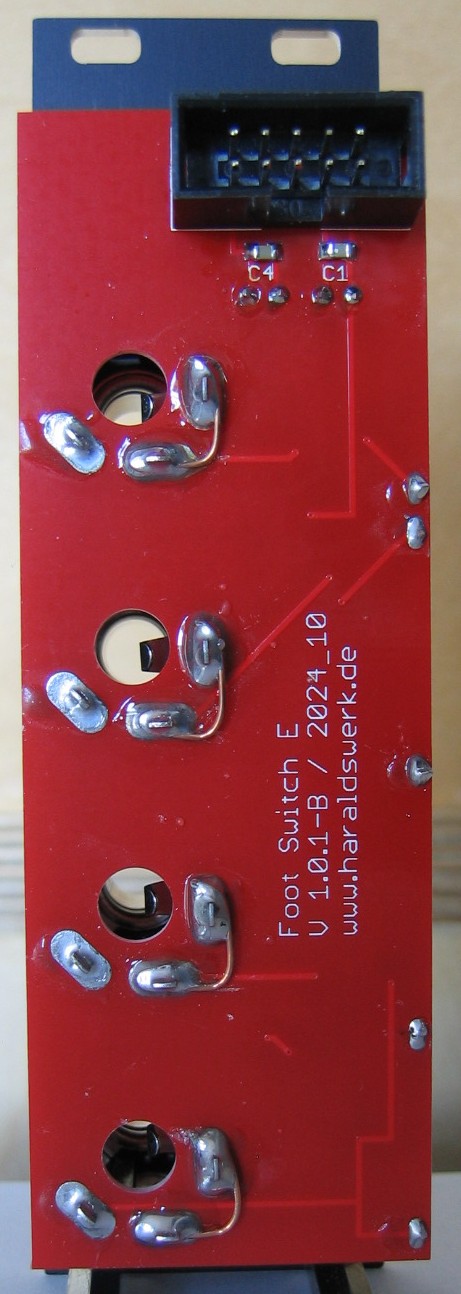

CV Pedal Connector: Back view

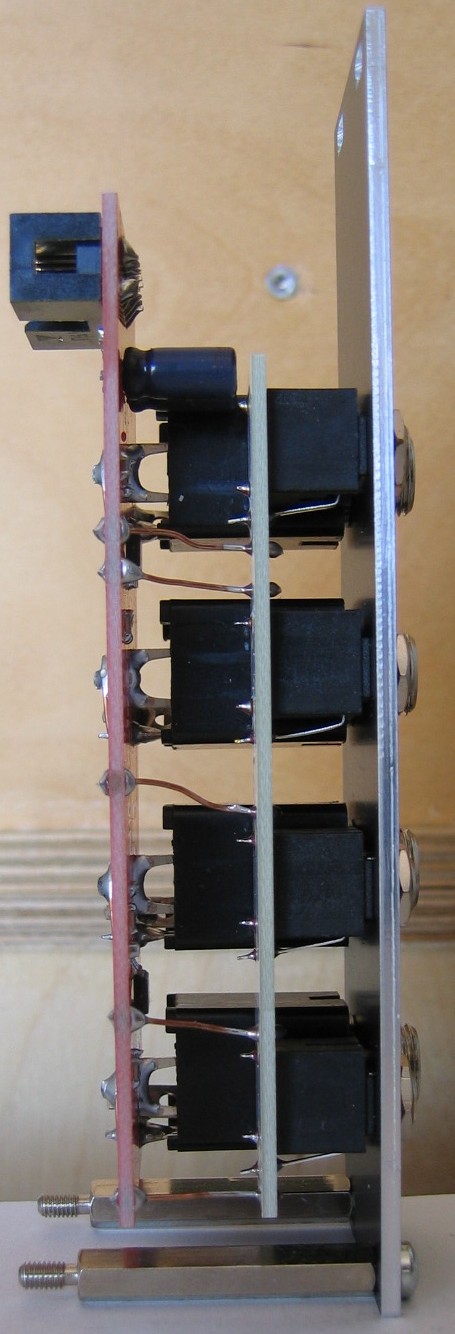

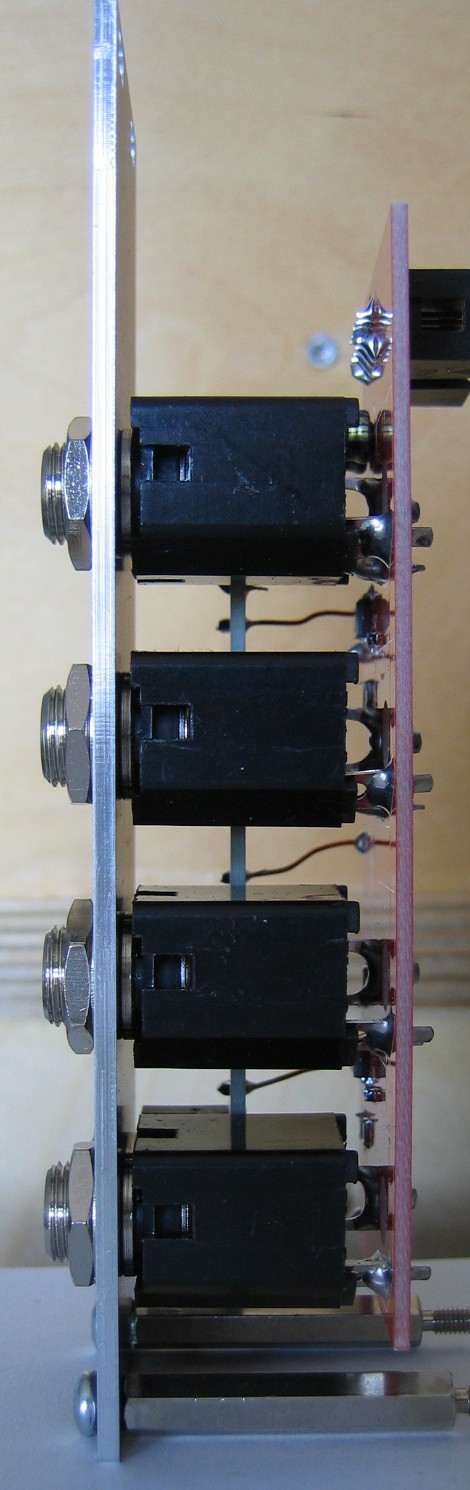

CV Pedal Connector: Side view left
