Motivation

This is my adaption of the Juergen Haible string filter. This filter has a long history, beginning with Ian Fritz "Filter Bank Design", Electronotes EN#107", Bernie Hutchins, "A 39-Channel Variable Q Filter Bank", EN#115 and Arthur Benade, "Fundamentals of Musical Acoustics" 2nd edition 1990. Albeit, this implementation uses another filter topology as his predecessors. I quote Juergen here: "Also very different from the classic Electronotes single-opamp filters (and as far as I can tell, also from Moog's string filter), I'm now going for a two-opamp biquad topology. This generally not so well-known filter uses two integrators like the ubiquitous 3-opamp state variable and biquad filters, but unlike these, one of the integrators is non-inverting: The so-called Deboo-Integrator." I have made a few changes though. I moved it to +/-12V Eurorack format. The PSU is left out. Added volume pots for every filter band. Made a complete different new PCB design. Added a VCA for overall volume control with control voltage. Made Q voltage controlled

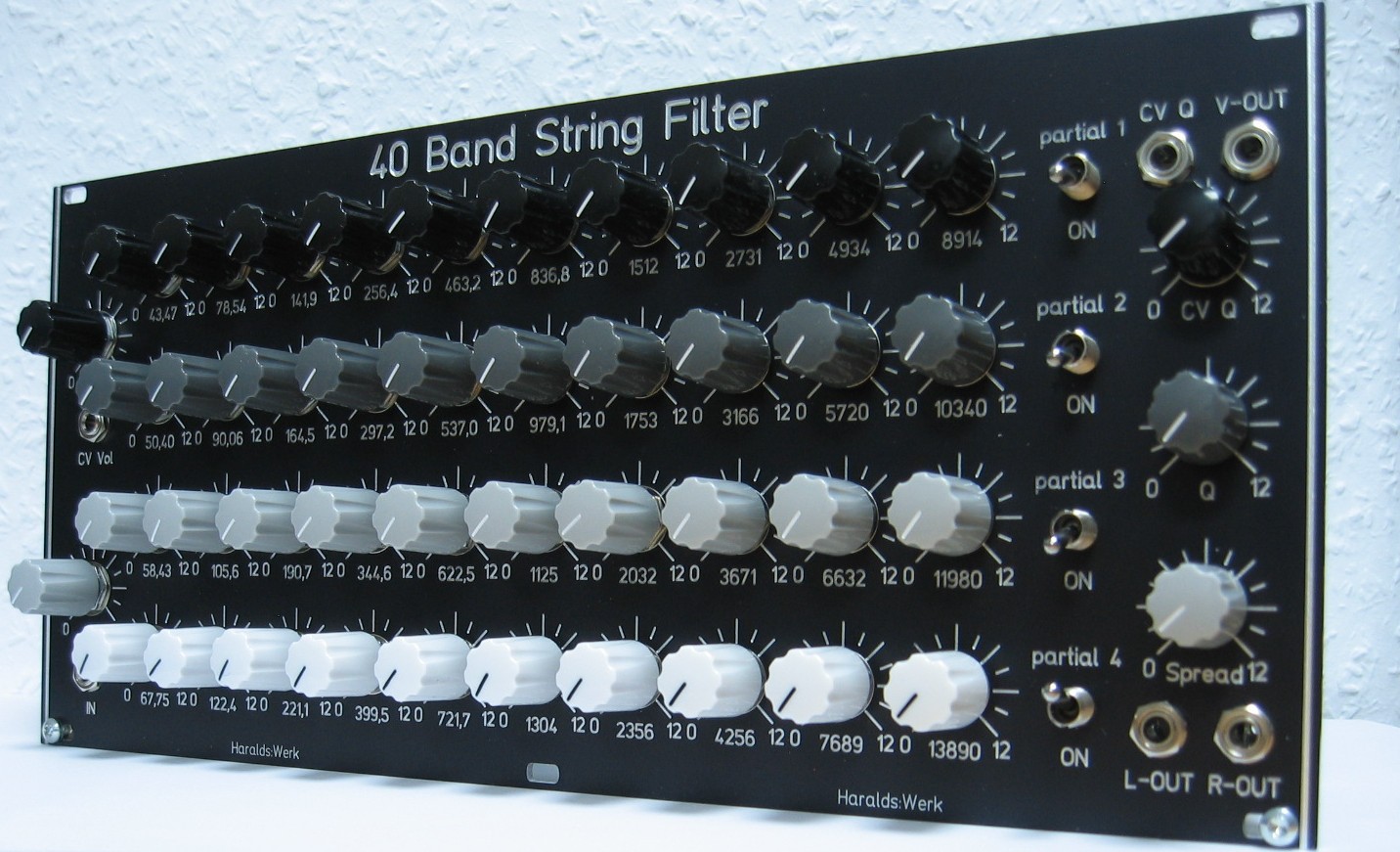

Specs and features

40 band filters with volume control
Overall volume control with VCA
Q voltage controlled
Left and right output
Spread control
On/off switch for partial filter banks
Power consumption around 200mA pos. rail and 110mA neg. rail

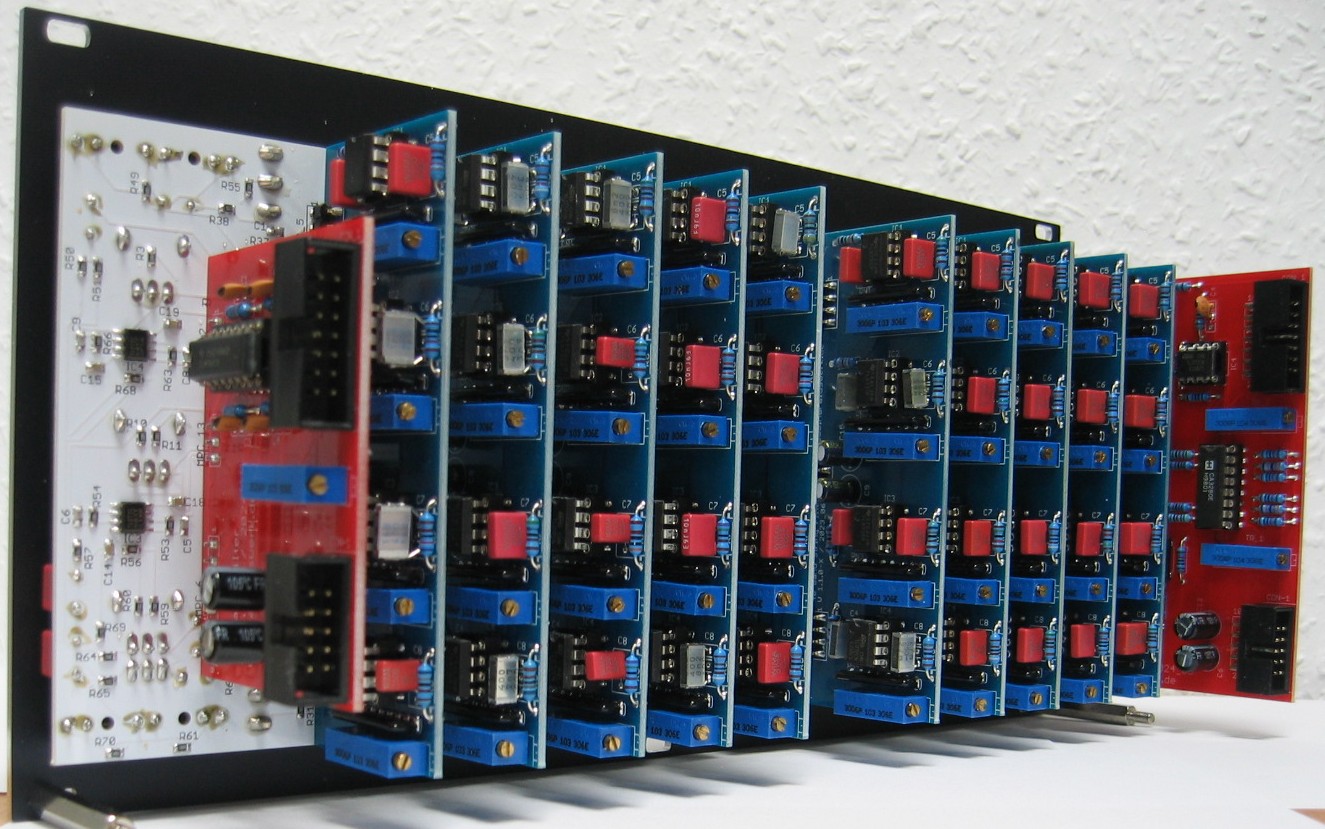

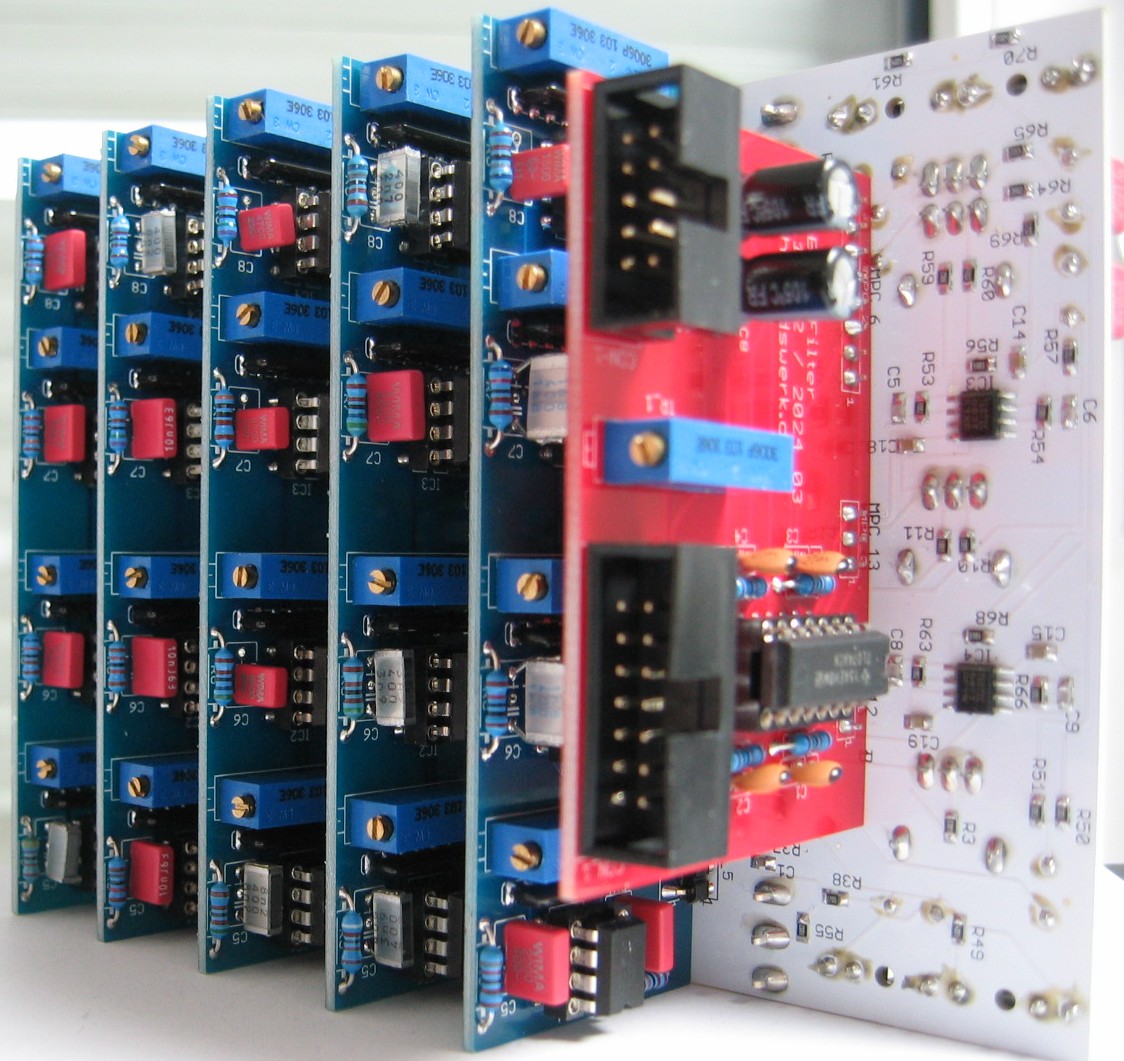

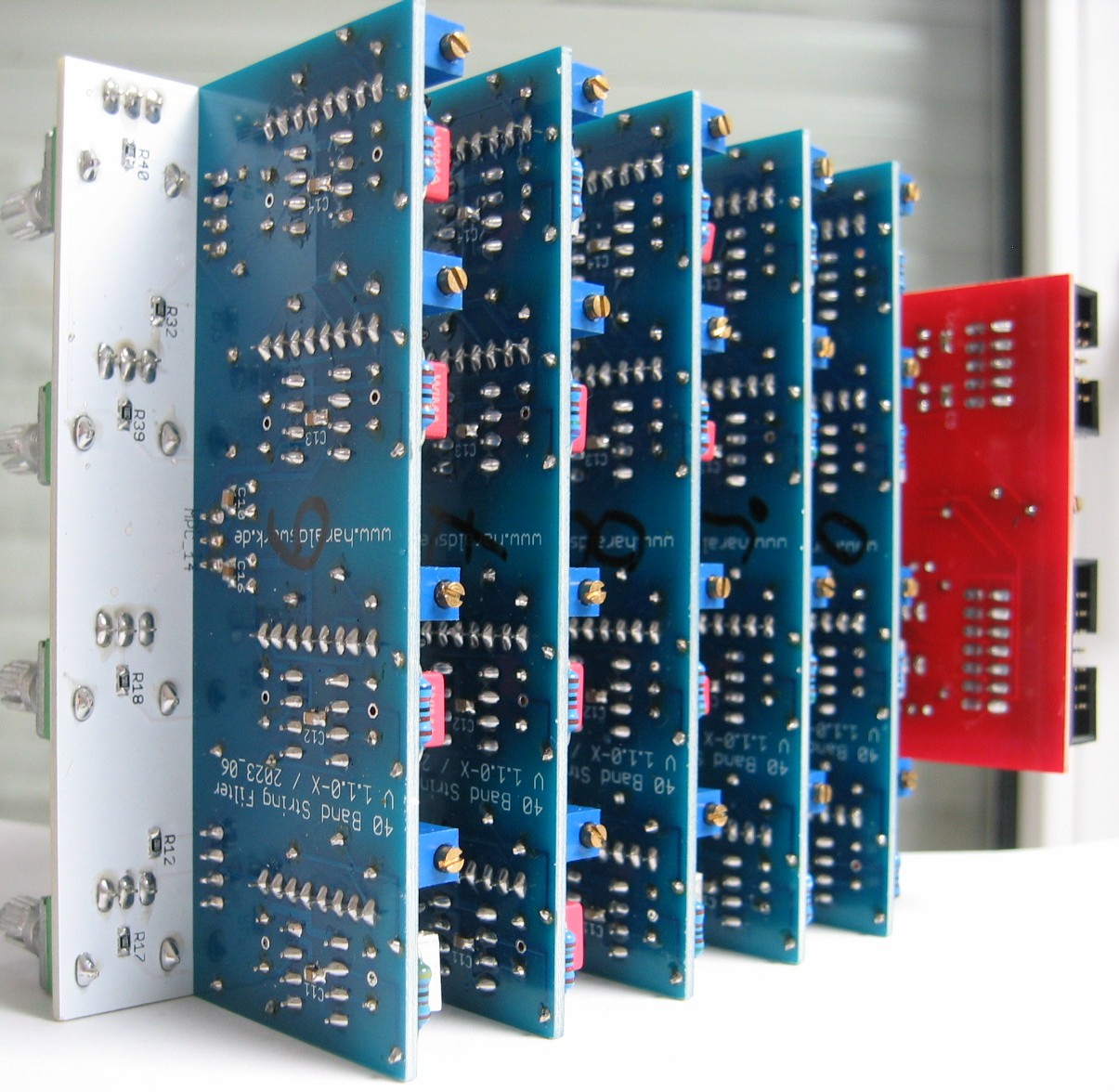

Implementation

Schematic

40 Band (String) Filter block diagram — 40 Band (String) Filter: Block diagram

40 Band (String) Filter frequency sweep — 40 Band (String) Filter: Frequency sweep

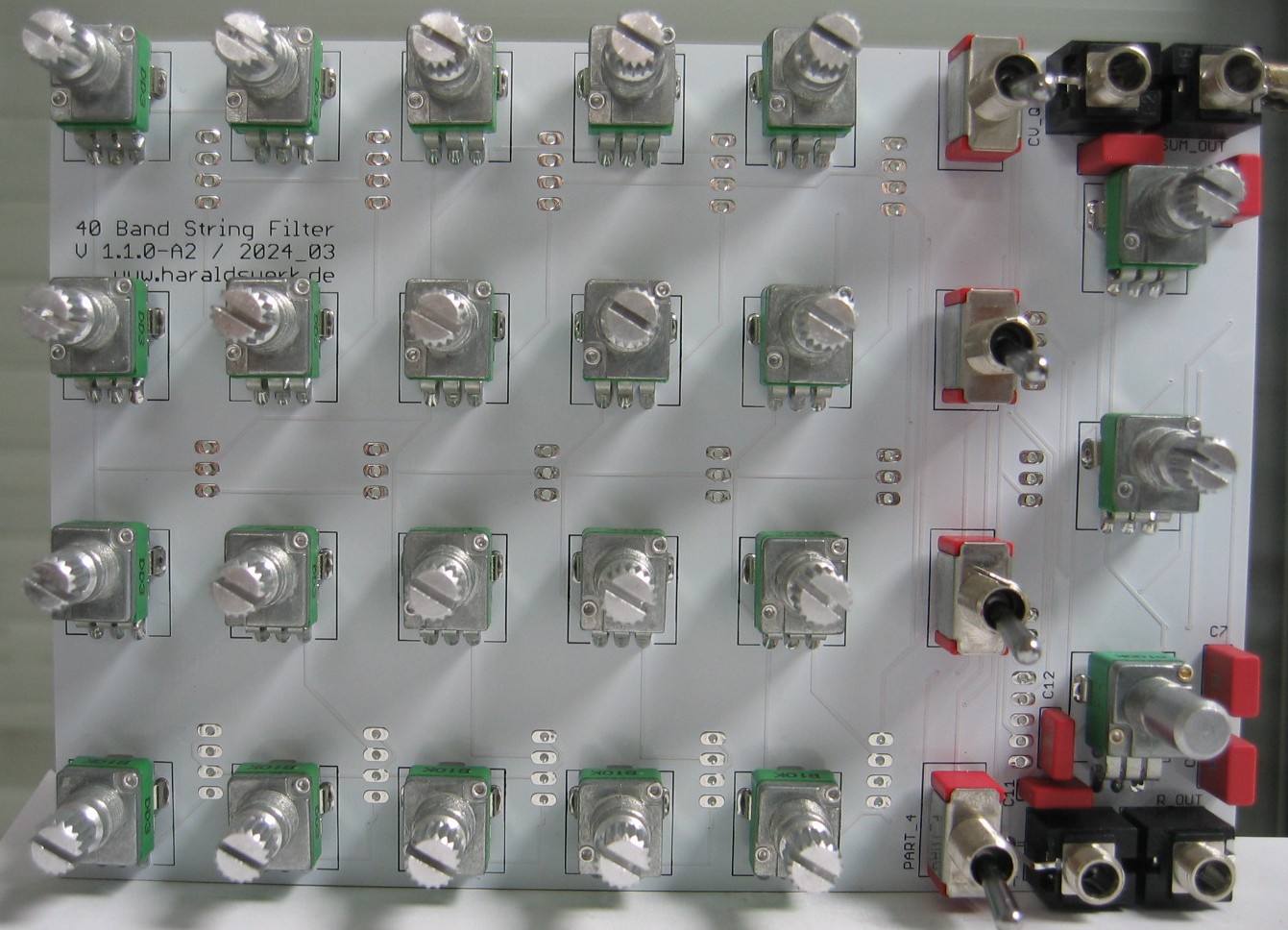

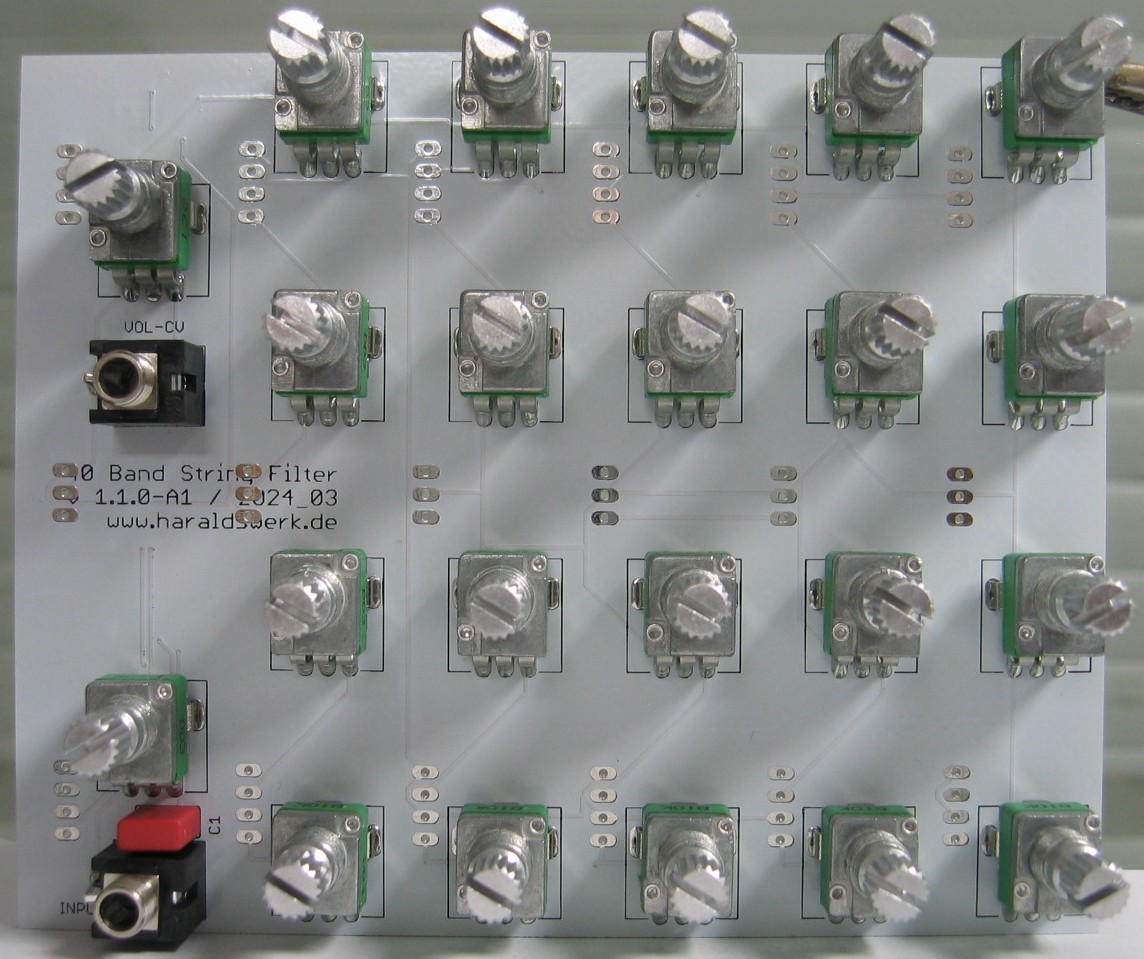

40 Band (String) Filter schematic control board 01 — 40 Band (String) Filter: Schematic control board 01

40 Band (String) Filter schematic control board 02 — 40 Band (String) Filter: Schematic control board 02

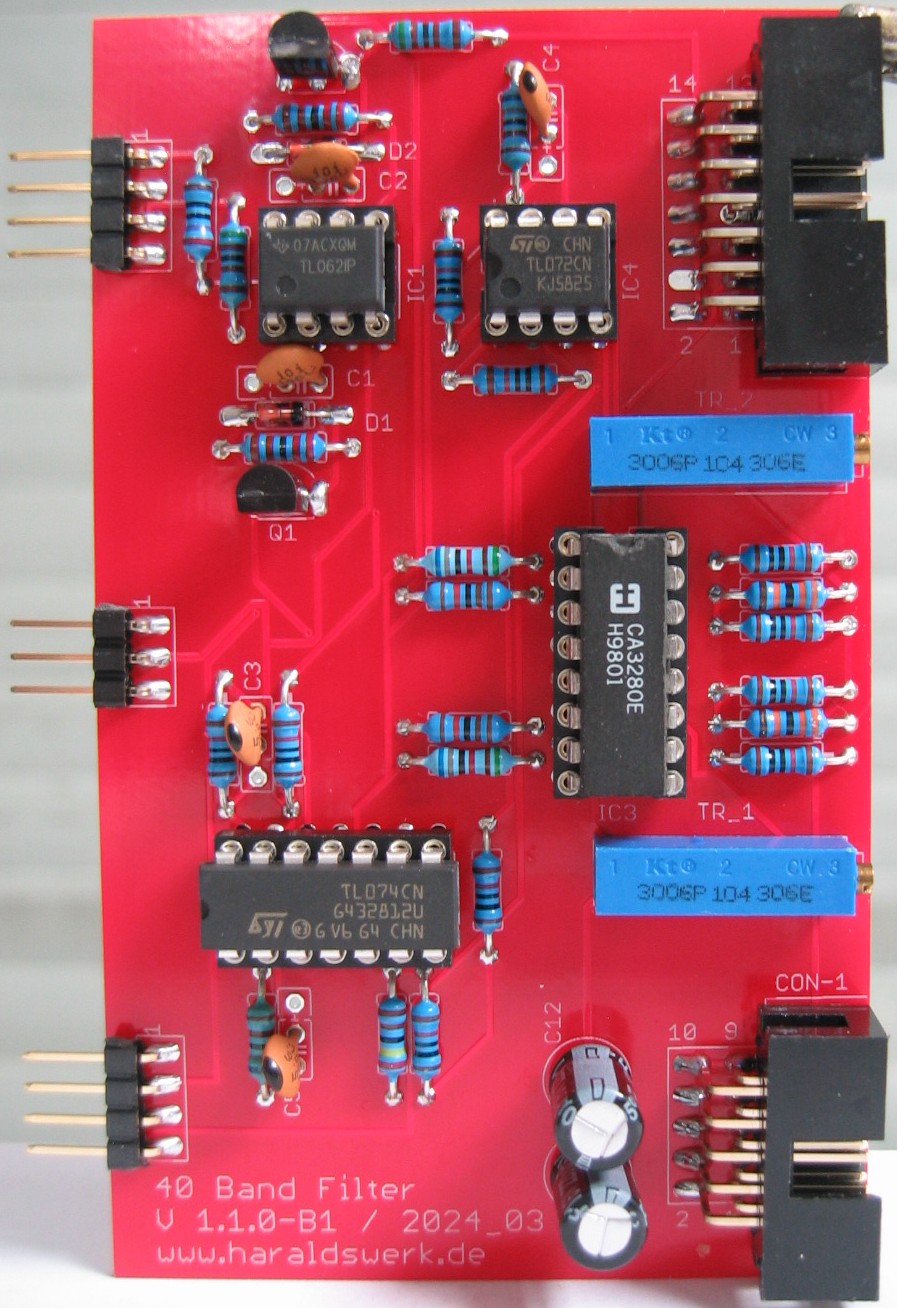

40 Band (String) Filter schematic main board 01 — 40 Band (String) Filter: Schematic main board 01

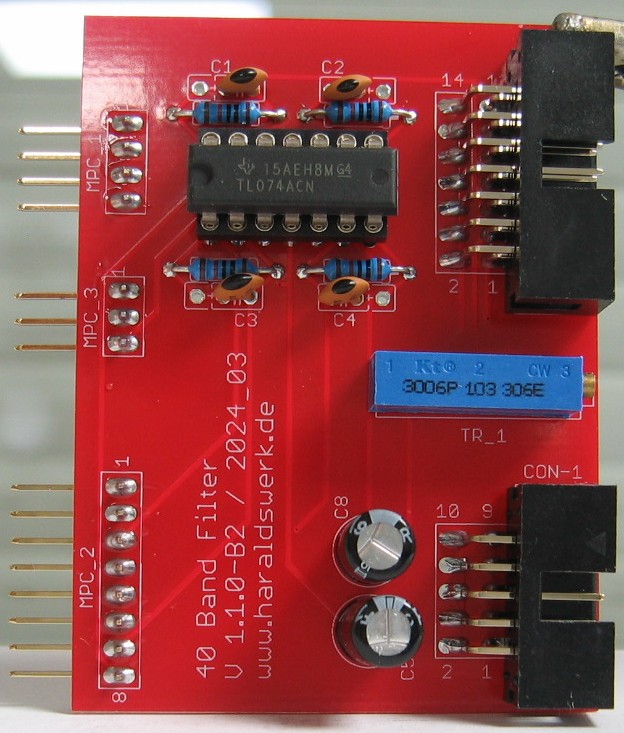

40 Band (String) Filter schematic main board 02 — 40 Band (String) Filter: Schematic main board 02

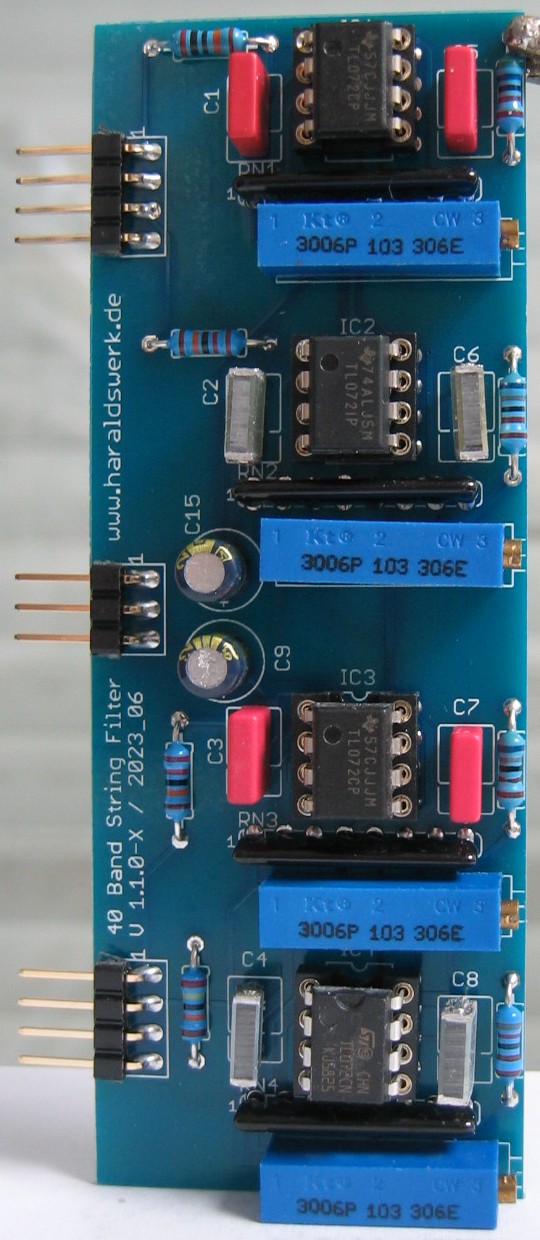

40 Band (String) Filter schematic filter board — 40 Band (String) Filter: Schematic filter board

Description:

Top

Calibration

Filter calibration: I recommend testing and calibrating the filters standalone before soldering them in. Power them up, apply a sine to the input and adjust the trimmer to maximum output
Adjust Th DC offset of the OTA with the usual procedure
Adjust the feedback to your needs and liking
