Motivation

NGF project Mixer faceplate flat

This is an often needed utility module. The mixer comes in handy for mixing CV sources and audio sources as well. This version is DC coupled, so you can use it for AC and DC mixing. There is an inverted output added. You can reverse the DC-CV mix with it or experiment with feedback loops in the audio domain. The added volume indicator us useful for finding the appropriate signal level. The volume indicator is optional. You can leave it out with no problems for the other functions.

Most noticeable change is moving to a "flat" design. The depth of the module is significantly reduced and most important no more potentiometer wiring is needed!


Specs and features


Implementation

Schematic

NGF Mixer flat schematic

NGF Mixer schematic


Description:

Straight forward design. The mixer is completely DC coupled. So you can use it for CV mixing as well as audio mixing. IC1A sums the four inputs. P5 is used to adjust the overall signal level. The level indicator is build around IC2. A precision full wave rectifier followed by two comparators to indicate the high an low level.


Top

Calibration

None

Top

Special parts

None

Download

NGF Mixer documentation download

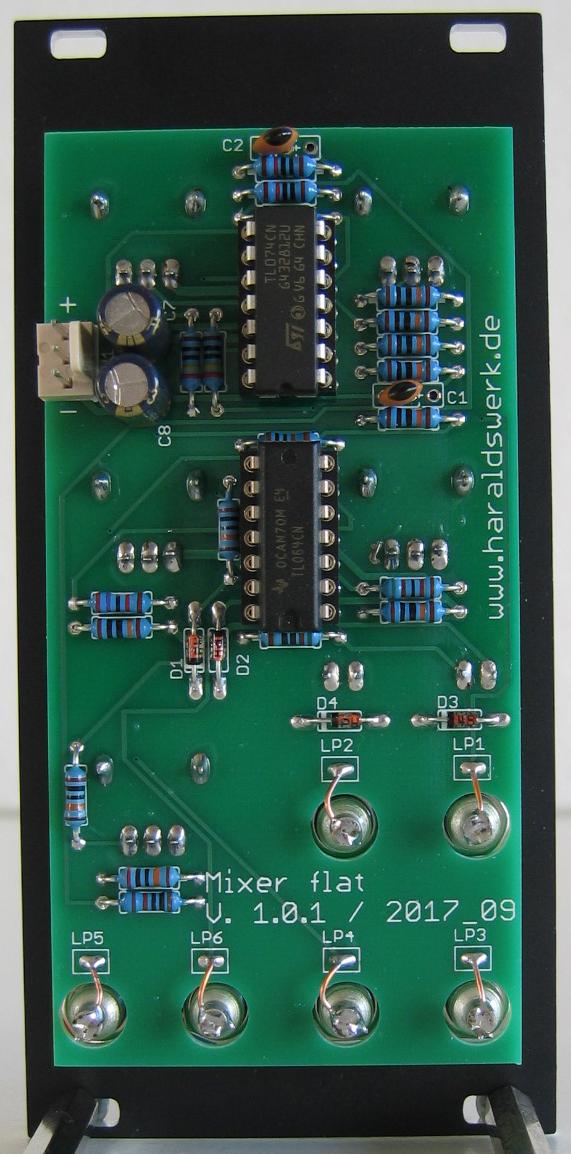

NGF Mixer flat: populated PCB

NGF Mixer flat: populated PCB


NGF Mixer flat side view

NGF Mixer flat: side view


NGF Mixer flat: back/side view

NGF Mixer flat: back/side view

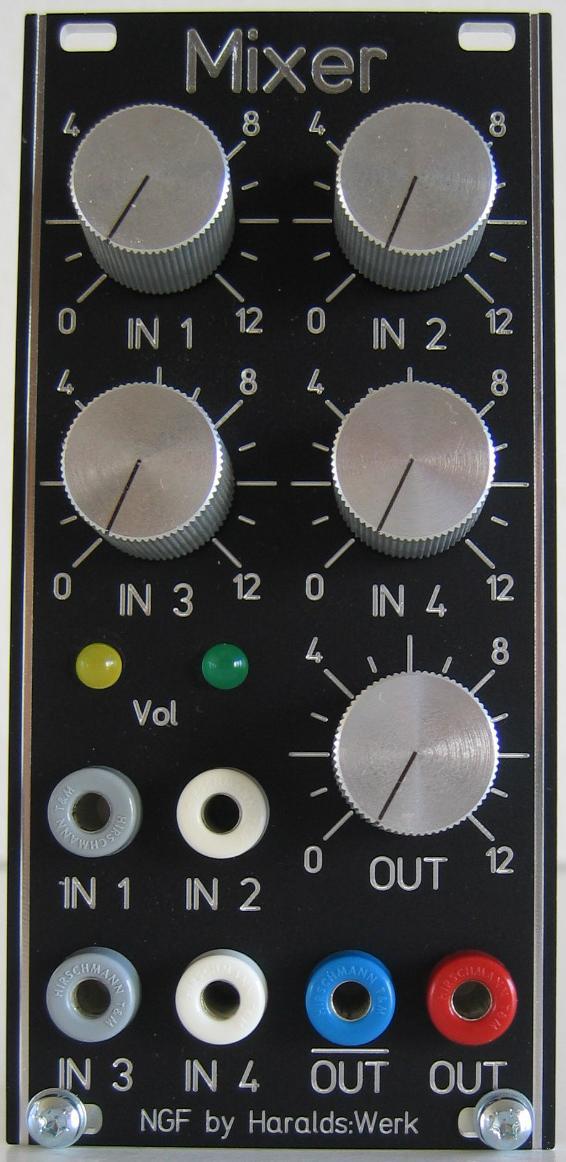

NGF Mixer flat: front view

NGF Mixer flat: front view
