NGF-E project Mix Out

This is my replacement of the original Elektor Formant COM module. I discarded the original circuitry because of the TL085 used with his unusual pinout and the availability of dedicated audio operational amplifiers. I used a more effective filter implementation for tone control. A mixer front end with four external inputs is added to make patching easier. A optional level indicator makes it easier to find the right volume level for best SNR. The maximum output volume is adjustable to protect your PA.



Specs and features


Implementation

Schematic

NGF-E Mix out schematic

NGF-E: Mix Out (COM) schematic


Description:

Nothing special in this schematic. The tone control is a Baxandall type.


Top

Calibration

  • Adjust the maximum output volume with TR5.
Top

Special parts

None

Download

NGF-E: Mix Out (COM) documentation download


NGF-E Mix Out stuffed PCB

NGF-E: Mix Out stuffed PCB

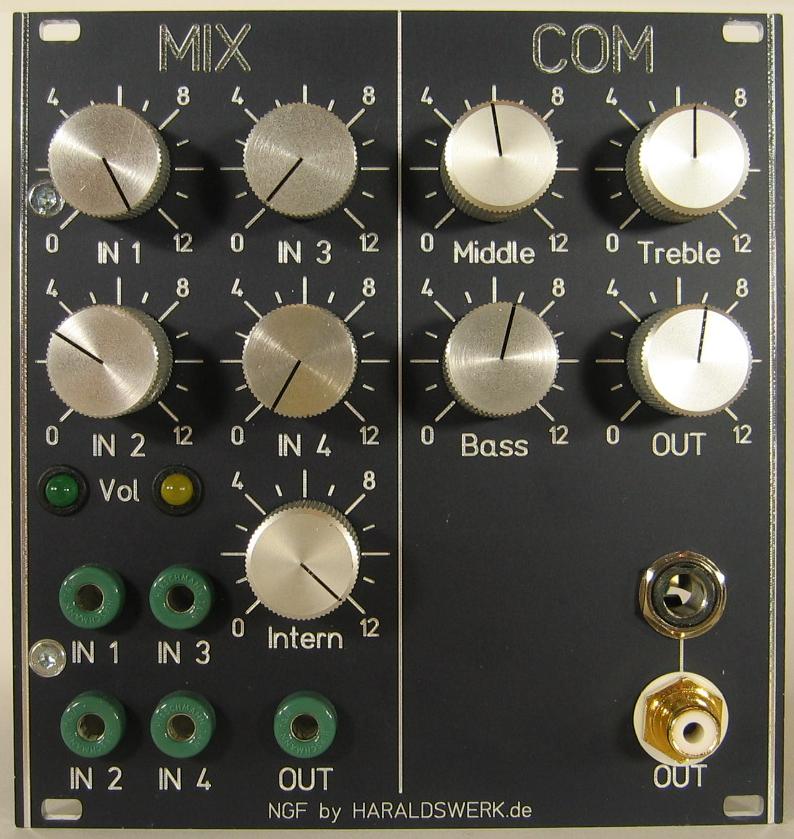

NGF-E Mix Out Front

NGF-E: Mix Out front view


NGF-E Mix Out Back

NGF-E: Mix Out back view


2017 September
